Vehicle Stability Control System System Diagram

Brake. Corolla. Zre142 Aze141
Brake Control Dynamic Control Systems. Corolla. Zre142 Aze141

Vehicle Stability Control System -- System Diagram



Corolla. Zre142 Aze141.Brake Control Dynamic Control Systems.Anti-Lock Brake System.Vehicle Stability Control System System Diagram


Corolla. Zre142 Aze141.Brake Control Dynamic Control Systems.Anti-Lock Brake System.Vehicle Stability Control System System Diagram

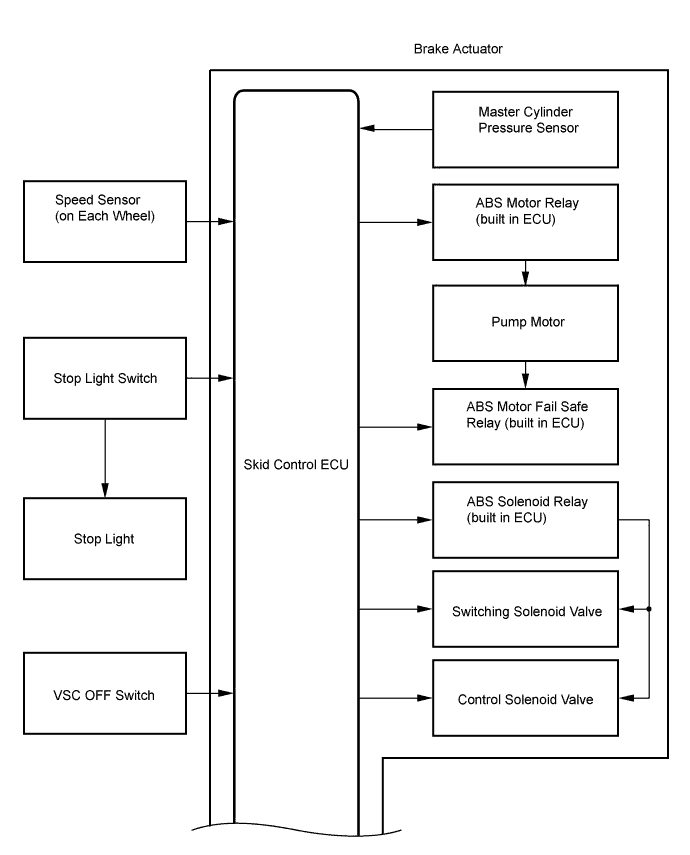

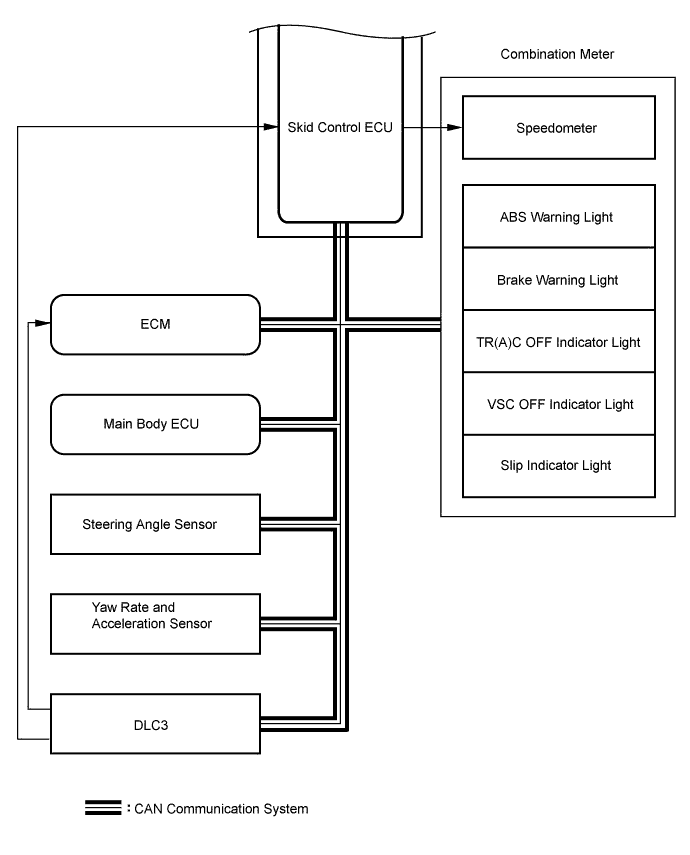

Transmitting ECU (Transmitter)
Receiving ECU
Signal
Communication Method
Skid control ECU
Steering angle sensor
Steering angle sensor request signal
CAN communication system
Skid control ECU
Yaw rate and acceleration sensor
Yaw rate and acceleration request signal
CAN communication system
Skid control ECU
ECM
  1. Wheel speed signal
  2. VSC data signal
CAN communication system
ECM
Skid control ECU
  1. Shift position signal
  2. Throttle position signal
  3. Engine speed signal
  4. Intake air temperature signal
  5. Engine torque request signal
  6. Accelerator pedal position signal
CAN communication system
Main body ECU
Skid control ECU
Parking brake switch signal
CAN communication system
Skid control ECU
Combination meter
  1. ABS warning light signal
  2. Brake warning light signal
  3. TR(A)C OFF indicator light signal
  4. VSC OFF indicator light signal
  5. Slip indicator light signal
  6. Wheel speed signal
CAN communication system
