Headlight Assembly Disassembly

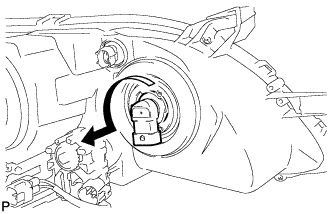

Remove the No. 2 headlight bulb as shown in the illustration.

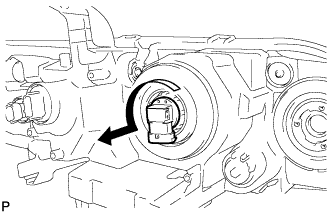

Remove the No. 1 headlight bulb as shown in the illustration.

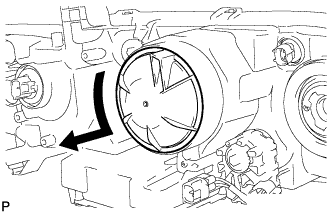

Remove the headlight socket cover as shown in the illustration.

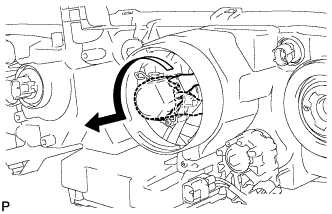

Separate the light control ECU socket as shown in the illustration.

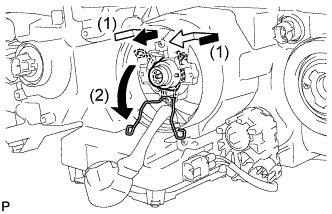

Release the set spring and remove the discharge headlight bulb as shown in the illustration.

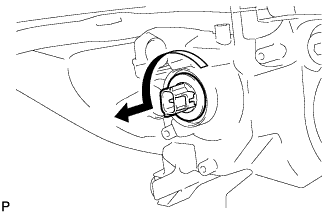

Turn the front turn signal light bulb and the front turn signal light socket in the direction indicated by the arrow and remove them as a unit.

Remove the front turn signal light bulb from the front turn signal light socket.

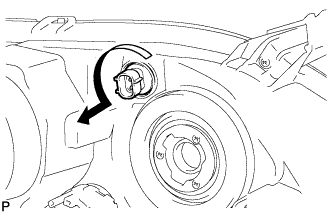

Turn the clearance light bulb and the clearance light socket in the direction indicated by the arrow and remove them as a unit.

Remove the clearance light bulb from the clearance light socket.

Remove the 4 screws.

Disconnect the connector and remove the light control ECU sub-assembly.

Remove the headlight gasket.

NOTICE:

After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.

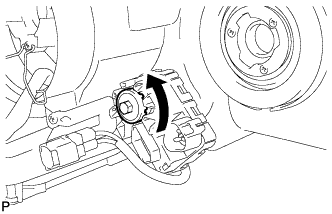

Turn the headlight leveling motor LH in the direction indicated by the arrow to disengage it.

Turn the aiming screw of the headlight leveling motor LH in the direction indicated by the arrow to disengage the shaft.

Pull and remove the headlight leveling motor LH.

Remove the headlight leveling motor base packing.

NOTICE:

After the headlight leveling motor base packing is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.
