Body Electrical. Camry. Acv40 Gsv40
Lighting. Camry. Acv40 Gsv40
Turn Signal Flasher Assembly -- On-Vehicle Inspection |
| 1. INSPECT TURN SIGNAL FLASHER ASSEMBLY |

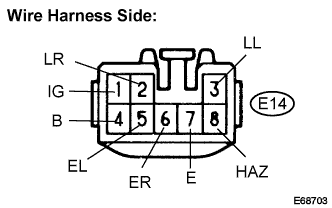

Disconnect the E14 turn signal flasher assembly connector.
 |
Measure the voltage and resistance according to the value(s) in the table below.
- Standard voltage:
Tester Connection Condition Specified Condition E14-1 (IG) - Body ground Ignition switch off Below 1 V E14-1 (IG) - Body ground Ignition switch ON 10 to 14 V E14-4 (B) - Body ground Always 10 to 14 V
- Standard resistance:
Tester Connection Condition Specified Condition E14-5 (EL) - Body ground Turn signal switch OFF 10 kΩ or higher E14-5 (EL) - Body ground Turn signal switch in LH position Below 1 Ω E14-6 (ER) - Body ground Turn signal switch OFF 10 kΩ or higher E14-6 (ER) - Body ground Turn signal switch in RH position Below 1 Ω E14-7 (E) - Body ground Always Below 1 Ω E14-8 (HAZ) - Body ground Hazard warning switch OFF 10 kΩ or higher E14-8 (HAZ) - Body ground Hazard warning switch ON Below 1 Ω
Reconnect the turn signal flasher assembly connector.
Measure the voltage according to the valve(s) in the table below.
- Standard voltage:
Tester Connection Condition Specified Condition E14-2 (LR) - Body ground Hazard warning switch OFF Below 1 V E14-2 (LR) - Body ground Hazard warning switch ON 10 to 14 V (60 to 120 times per minute) E14-2 (LR) - Body ground Turn signal switch OFF Below 1 V E14-2 (LR) - Body ground Ignition switch ON and turn signal switch in RH position 10 to 14 V (60 to 120 times per minute) E14-3 (LL) - Body ground Hazard warning switch OFF Below 1 V E14-3 (LL) - Body ground Hazard warning switch ON 10 to 14 V (60 to 120 times per minute) E14-3 (LL) - Body ground Turn signal switch OFF Below 1 V E14-3 (LL) - Body ground Ignition switch ON and turn signal switch in LH position 10 to 14 V (60 to 120 times per minute) E14-5 (EL) - Body ground Ignition switch ON and turn signal switch OFF 10 to 14 V E14-5 (EL) - Body ground Ignition switch ON and turn signal switch in LH position Below 1 V E14-6 (ER) - Body ground Ignition switch ON and turn signal switch OFF 10 to 14 V E14-6 (ER) - Body ground Ignition switch ON and turn signal switch in RH position Below 1 V E14-8 (HAZ) - Body ground Hazard warning switch OFF 10 to 14 V E14-8 (HAZ) - Body ground Hazard warning switch ON Below 1 V
