Rear Combination Light Assembly Installation

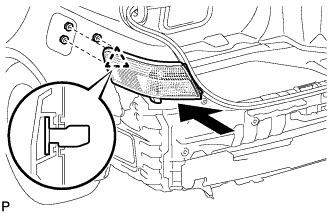

Engage the clip and install the rear light assembly.

Install the 3 nuts.

Torque:

3.6 N*m{37 kgf*cm, 32 in.*lbf}

Connect the connector and clamp.

Install the luggage compartment door cover with the 13 clips.

Install the luggage compartment door assist grip with the 2 screws.

Engage the 3 claws and close the assist grip cover.

Engage the clip and install the rear combination light assembly.

Install the 3 nuts.

Torque:

3.6 N*m{37 kgf*cm, 32 in.*lbf}

Connect the 2 connectors and clamp.

Engage each claw.

Install the rear bumper assembly with the 6 screws and 2 clips.

Install the 2 rear bumper plates.

Engage the grommet.

Connect the connector.

Engage each claw.

Install the rear bumper assembly with the 6 screws and 2 clips.

Install the 2 rear bumper plates.

Install the rear quarter panel mudguard sub-assembly LH with the 3 screws.

Install the luggage compartment inner trim cover LH with the 2 clips.

Engage the 7 clips and install the rear floor finish plate.

Install the 2 No. 1 luggage compartment trim hooks with the 2 screws.

Engage the clip and install the luggage compartment side tray assembly.

Install the bolt.
