Vane Pump (For 2Gr-Fe) Disassembly

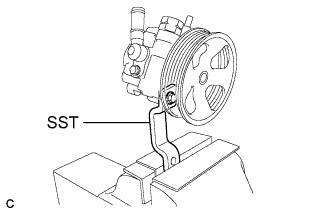

Using SST, hold the vane pump assembly in a vise.

SST

09630-00014(09631-00132)

Remove the bolt and the power steering suction port union from the vane pump assembly.

Using a screwdriver, remove the O-ring from the power steering suction port union.

Remove the power steering fluid pressure switch from the vane pump assembly.

NOTICE:

Perform this procedure only when the power steering fluid pressure switch is replaced.

Remove the pressure port union.

Remove the O-ring from the pressure port union.

Remove the flow control valve assembly and the flow control valve compression spring.

Remove the 4 bolts and vane pump rear housing from the vane pump front housing.

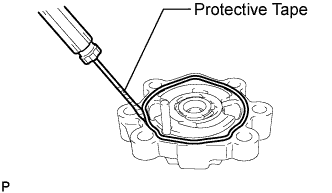

Using a screwdriver, remove the O-ring from the vane pump rear housing.

HINT:

Tape the screwdriver tip before use.

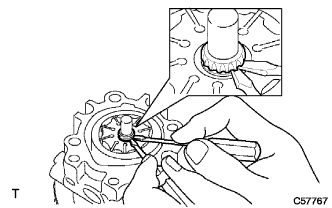

Using 2 screwdrivers, remove the vane pump shaft snap ring from the vane pump shaft with pulley.

Remove the vane pump shaft with pulley.

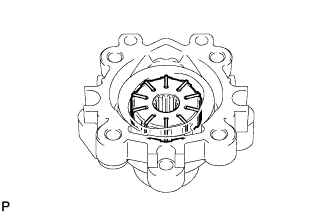

Remove the 10 vane pump plates.

Remove the vane pump rotor.

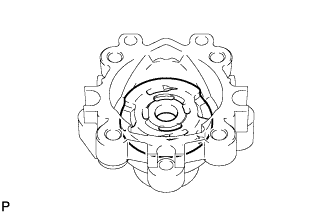

Remove the vane pump cam ring from the vane pump front housing.

Remove the vane pump front side plate from the vane pump front housing.

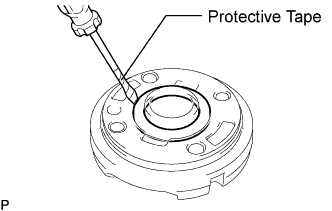

Using a screwdriver, remove the O-ring from the vane pump front side plate.

HINT:

Tape the screwdriver tip before use.

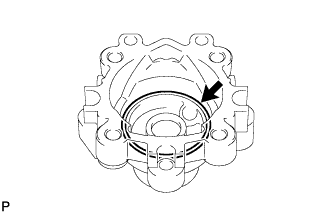

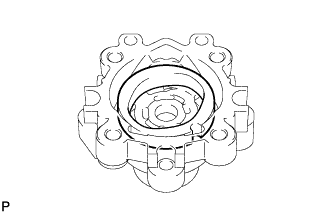

Remove the O-ring from the vane pump front housing.

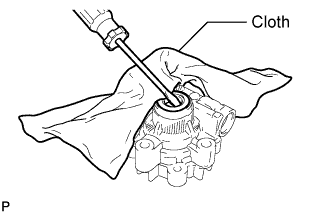

Using a screwdriver and a shop rag or a piece of cloth, remove the vane pump housing oil seal.

NOTICE:

Be careful not to damage the vane pump front housing.
