Vanity Light Inspection

Body Electrical. Camry. Acv40 Gsv40
Lighting. Camry. Acv40 Gsv40

  1. INSPECT VANITY LIGHT ASSEMBLY

Vanity Light -- Inspection



1. INSPECT VANITY LIGHT ASSEMBLY


    Camry. Acv40 Gsv40

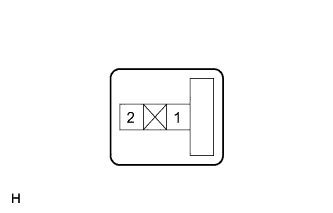

  1. Apply battery voltage to the vanity light assembly connector.

  1. Check that the vanity light comes on.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) → Terminal 1
    Battery negative (-) → Terminal 2
    		Vanity light comes on
    If the result is not as specified, replace the bulb.
