Engine Front Oil Seal Removal

Engine. Camry. Acv40 Gsv40
2Az-Fe Engine Mechanical. Camry. Acv40 Gsv40

  1. REMOVE FRONT WHEEL RH

  2. REMOVE FRONT FENDER APRON SEAL RH

  3. REMOVE ENGINE UNDER COVER LH

  4. REMOVE ENGINE UNDER COVER RH

  5. REMOVE V-RIBBED BELT

  6. REMOVE CRANKSHAFT PULLEY

  7. REMOVE TIMING CHAIN CASE OIL SEAL

Engine Front Oil Seal -- Removal



1. REMOVE FRONT WHEEL RH


2. REMOVE FRONT FENDER APRON SEAL RH


3. REMOVE ENGINE UNDER COVER LH


4. REMOVE ENGINE UNDER COVER RH


5. REMOVE V-RIBBED BELT


    Camry. Acv40 Gsv40.2Az-Fe Engine Mechanical.Engine.Engine Front Oil Seal  Removal
  1. Using SST and 19 mm socket wrench, loosen the V-ribbed belt tensioner arm clockwise, then remove the V-ribbed belt.

    SST
    09216-42010
    NOTICE:
    1. Be sure to connect SST and the tools so that they are in line during use.
    2. When retracting the tensioner, turn it clockwise slowly for 3 seconds or more. Do not apply force rapidly.
    3. After the tensioner is fully retracted, do not apply force any more than necessary.


6. REMOVE CRANKSHAFT PULLEY


    Camry. Acv40 Gsv40.2Az-Fe Engine Mechanical.Engine.Engine Front Oil Seal  Removal
  1. Using SST, fix the pulley in place and loosen the pulley bolt.

    SST
    09213-54015(91651-60855)
    09330-00021


    Camry. Acv40 Gsv40.2Az-Fe Engine Mechanical.Engine.Engine Front Oil Seal  Removal
  1. Using SST, remove the pulley bolt and pulley.

    SST
    09950-50013(09951-05010,09952-05010,09953-05020,09954-05021)
    09950-40011(09957-04010)
    HINT:
    If necessary, remove the pulley and pulley bolt using SST.


7. REMOVE TIMING CHAIN CASE OIL SEAL


    Camry. Acv40 Gsv40.2Az-Fe Engine Mechanical.Engine.Engine Front Oil Seal  Removal

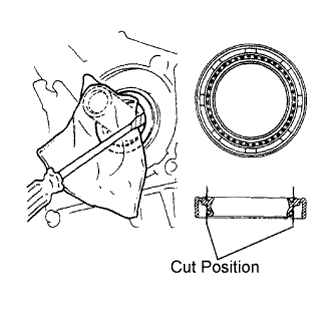

  1. Using a knife, cut off the oil seal lip.

  1. Using a screwdriver with the tip taped, pry out the oil seal.

    NOTICE:
    After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
