Park / Neutral Position Switch Adjustment

Transmission. Camry. Acv40 Gsv40
U250E Automatic Transaxle. Camry. Acv40 Gsv40

  1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Park / Neutral Position Switch -- Adjustment



1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY


    Camry. Acv40 Gsv40.U250E Automatic Transaxle.Automatic Transaxle System.Park / Neutral Position Switch Adjustment

  1. Loosen the 2 bolts of the park/neutral position switch and move the shift lever to the N position.

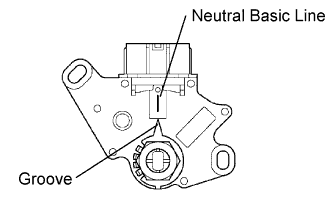

  1. Align the groove with the neutral basic line.

  1. Hold the switch in position and tighten the 2 bolts.

    Torque:
    5.4 N*m{55 kgf*cm, 48 in.*lbf}

  1. After adjustment, perform the inspection (CAMRY_ACV40 RM000000YWQ004X.html).
