Automatic Transaxle System System Diagram

Transmission. Camry. Acv40 Gsv40
U250E Automatic Transaxle. Camry. Acv40 Gsv40

Automatic Transaxle System -- System Diagram

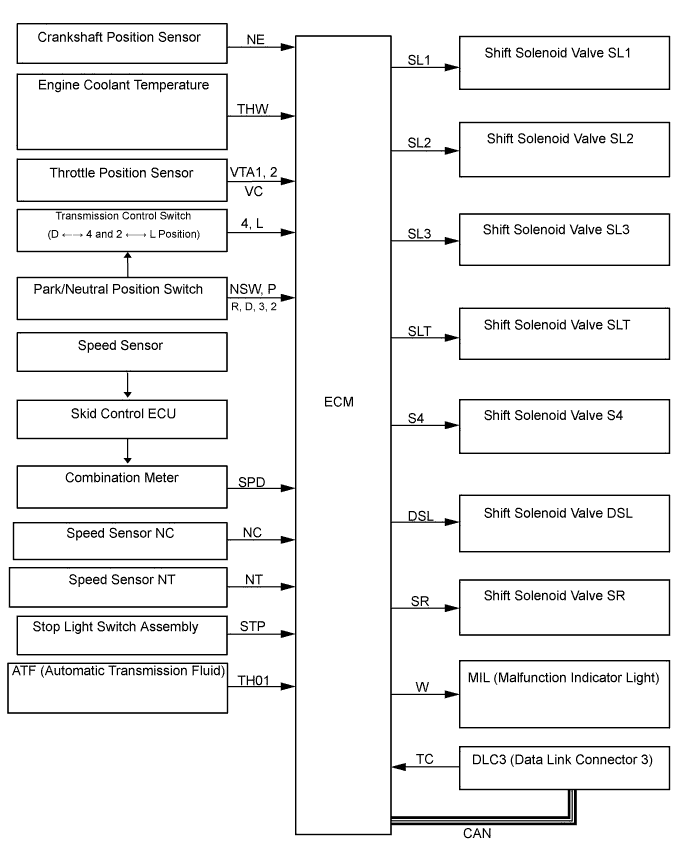

The configuration of the electronic control system in the U250E automatic transaxles is as shown in the following chart.

Camry. Acv40 Gsv40.U250E Automatic Transaxle.Automatic Transaxle System.Automatic Transaxle System System Diagram
