Transmission. Camry. Acv40 Gsv40
U250E Automatic Transaxle. Camry. Acv40 Gsv40
Speed Sensor -- Inspection |

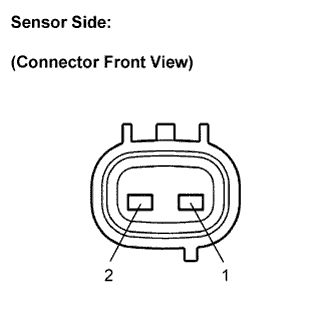

| 1. INSPECT SPEED SENSOR (NT SENSOR) |
Disconnect the speed sensor connector from the transaxle.
 |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Specified Condition (20°C (68°F)) 1 - 2 560 to 680 Ω - If the resistance value is not as specified, replace the speed sensor.
| 2. INSPECT SPEED SENSOR (NC SENSOR) |
Disconnect the speed sensor connector from the transaxle.
|
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Specified Condition (20°C (68°F)) 1 - 2 560 to 680 Ω - If the resistance value is not as specified, replace the speed sensor.
