INSTALL FUEL SENDER GAUGE ASSEMBLY
INSTALL FUEL SENDER GAUGE ASSEMBLY (for Fuel Sub Tank)
INSTALL FUEL TANK VENT TUBE ASSEMBLY
ДАТЧИК УРОВНЯ ТОПЛИВА В СБОРЕ - УСТАНОВКА
| 1. INSTALL FUEL SENDER GAUGE ASSEMBLY |
Set the fuel sender gauge on the fuel sub-tank. Then slide the fuel sender gauge downward to install it.
| *1 | Fuel Sub-Tank |
 | Slide |
Connect the fuel sender gauge connector.
| 2. INSTALL FUEL SENDER GAUGE ASSEMBLY (for Fuel Sub Tank) |
Set the fuel sender gauge on the fuel gauge support. Then slide the fuel sender gauge upward to install it.
| *1 | Fuel Gauge Support |
| Slide |
- ПРИМЕЧАНИЕ:
- Make sure the part labeled A in the illustration is securely inserted into the hole of the fuel gauge support before sliding the fuel sender gauge upward.

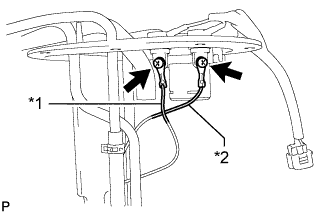

Install the 2 lead wires with the 2 screws.
- Момент затяжки:
- 2.0 N*m{ 20 kgf*cm, 18 in.*lbf}
| *1 | Lead Wire (Black) |
| *2 | Lead Wire (Red) |
- ПРИМЕЧАНИЕ:
- Be sure to install the lead wires in the correct locations according to their color as shown in the illustration.
| 3. INSTALL FUEL TANK VENT TUBE ASSEMBLY |
for Single Tank Type:
Install the fuel tank vent tube assembly (See page ).
for Double Tank Type:
for Fuel Main Tank:
Install the fuel tank vent tube assembly (See page ).
for Fuel Sub Tank:
Install the fuel tank vent tube assembly (See page ).
