Land Cruiser URJ200 URJ202 GRJ200 VDJ200 - SEAT
REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side) - DISASSEMBLY
- CAUTION:
- Wear protective gloves. Sharp areas on the parts may injure your hands.
- HINT:

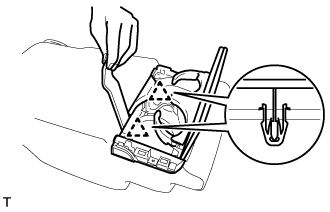

| 1. REMOVE SEAT ADJUSTER BOLT COVER |
Using a screwdriver, detach the 2 claws and remove the cover.
- HINT:
- Tape the screwdriver tip before use.
| 2. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH |
Remove the screw and release handle.
| 3. REMOVE REAR NO. 1 SEAT RECLINING COVER LH |
Remove the 2 screws.
Detach the 3 claws in the order shown in the illustration, and then remove the cover.
| 4. REMOVE REAR NO. 1 SEAT RECLINING COVER RH |
Remove the 2 screws.
Detach the 4 claws and remove the cover.
| 5. REMOVE UPPER SEAT TRACK RAIL COVER LH |
Using a screwdriver, detach the 2 claws and remove the cover.
- HINT:
- Tape the screwdriver tip before use.
| 6. REMOVE UPPER SEAT TRACK RAIL COVER RH |
Using a screwdriver, detach the 2 claws and remove the cover.
- HINT:
- Tape the screwdriver tip before use.
| 7. REMOVE NO. 1 SEAT CUSHION COVER |
Detach the 4 claws and remove the 2 covers.
| 8. REMOVE REAR NO. 2 SEAT LEG SIDE COVER |
Remove the 4 screws and detach the 4 claws.
Remove the bolt that is securing the fold seat stopper band and remove the seat leg side cover together with the fold seat stopper band.
| 9. REMOVE FOLD SEAT STOPPER BAND ASSEMBLY |
Remove the fold seat stopper band from the seat leg side cover.
| 10. REMOVE REAR SEAT SIDE HINGE FEMALE COVER |
Using a screwdriver, detach the 6 claws and remove the 2 covers.
- HINT:
- Tape the screwdriver tip before use.
| 11. REMOVE REAR SEAT SIDE HINGE MALE COVER LH |
Detach the clip and remove the cover.
| 12. REMOVE REAR SEAT SIDE HINGE MALE COVER RH |
Detach the clip and remove the cover.
| 13. REMOVE REAR NO. 2 SEAT PROTECTOR |
w/ Rear Seat Side Airbag:
Detach the claw and remove the wire harness connector.
w/ Seat Heater System:
Detach the claw and remove the wire harness connector.
Using a clip remover, remove the clip.
Detach the claw and remove the seat protector from the seat hinge.
Detach the 2 claws, open the protector and remove wire harness.
| 14. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH |
w/ Rear Seat Side Airbag:
Detach the wire harness clamp.
w/ Seat Heater System:
Detach the wire harness clamp.
Remove the 2 nuts and hinge.
Detach the cable clamp and disconnect the cable.
| 15. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH |
Remove the 2 nuts and hinge.
| 16. REMOVE SEAT BELT ANCHOR COVER CAP |
Detach the claw and open the cap.
Remove the screw and anchor cover cap.
| 17. REMOVE REAR SEATBACK STAY COVER LH |
Remove the screw.
Detach the 2 claws and remove the cover.
| 18. REMOVE REAR UNDER SIDE COVER LH |
Detach the 10 claws.
Remove the 5 screws.
Detach the 2 clips and 2 claws, and remove the cover.

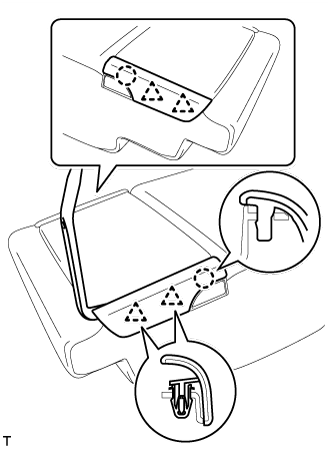

| 19. REMOVE NO. 1 SEAT CUSHION PLATE |
Detach the 3 claws and remove the seat cushion plate.
| 20. REMOVE REAR SEAT CUSHION COVER RH |
Remove the 4 screws.
Detach the 2 claws and remove the cover.
| 21. REMOVE REAR SEAT UNDER TRAY COVER LH |
Remove the 2 screws.
Detach the 4 claws and remove the cover.
| 22. REMOVE REAR SEAT TRACK HANDLE SUB-ASSEMBLY |
Remove the 2 screws and seat track handle.
Detach the 2 cable clamps and disconnect the 2 cables.
Detach the cable clamp and disconnect the cable.
| 23. REMOVE FOLD SEAT LOCK CONTROL CABLE SUB-ASSEMBLY |
| 24. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH |
Remove the bolt and belt.
- HINT:
- The No. 1 seat 3 point type belt anchor is fixed with the same bolt as the rear No. 1 seat inner belt LH. Therefore, it becomes disconnected when the bolt is removed.
| 25. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH |
Disconnect the belt anchor.
| 26. REMOVE SEAT CUSHION COVER WITH PAD |
w/ Rear Seat Side Airbag:
Detach the side airbag wire harness clamps.
Remove the side airbag wire harness through the hole in the seat cushion.
w/ Seat Heater System:
Disconnect the 2 seat heater connectors.
Remove the seatback heater wire harness through the hole in the seat cushion.
Remove the seat cushion cover with pad.
| 27. REMOVE REAR SEPARATE TYPE SEAT CUSHION COVER |
Detach the 3 pieces of fastening tape.
Remove the hog rings and cover.
| 28. REMOVE REAR SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System) |
Cut off the tack pins which fasten the seat heater to the seat cushion cover, and then remove the seat cushion heater from the seat cushion cover.
| 29. REMOVE REAR SEATBACK COVER |
Using a screwdriver, detach the 4 claws and remove the cover.
- HINT:
- Tape the screwdriver tip before use.
| 30. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH |
w/ Center Armrest:
Detach the 2 claws on the top of the board.
Pull up the board to detach the 2 claws on the bottom of the board and remove it.
w/o Center Armrest:
Detach the 3 claws on the top of the board.
Pull up the board to detach the 3 claws on the bottom of the board and remove it.
| 31. REMOVE REAR SEAT HEADREST ASSEMBLY |
| 32. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY |
w/ Center Armrest:
Detach the 4 claws and remove the 2 supports.
w/o Center Armrest:
Detach the 8 claws and remove the 4 supports.
| 33. REMOVE SHOULDER BELT ANCHOR COVER |
Using a screwdriver, detach the 2 claws and remove the cover.
- HINT:
- Tape the screwdriver tip before use.
| 34. REMOVE REAR SEAT BELT HOLE COVER LH |
Remove the screw.
Detach the 4 claws and remove the cover.
| 35. REMOVE SEATBACK COVER WITH PAD |
w/ Center Armrest:
Remove the hog rings.
w/o Center Armrest:
Remove the hog rings.
w/ Rear Seat Side Airbag:
Remove the cap nut and seatback cover bracket from the seat frame.
Remove the side airbag wire harness through the hole in the seatback.
w/ Seat Heater System:
Cut the cable tie and disconnect the seatback heater wire harness.
Remove the seatback heater wire harness through the hole in the seatback.
w/ Center Armrest:
Pull the seat belt into the inside of the seat.
w/o Center Armrest:
Pull the seat belt into the inside of the seat.
Remove the seatback cover with pad.
| 36. REMOVE REAR SEPARATE TYPE SEATBACK COVER |
w/ Rear Seat Side Airbag:
Disconnect the seatback cover bracket from the seatback pad.
w/ Center Armrest:
Remove the hog rings and rear seatback cover.
w/o Center Armrest:
Remove the hog rings and rear seatback cover.
| 37. REMOVE REAR SEATBACK HEATER ASSEMBLY (w/ Seat Heater System) |
Cut off the tack pins which fasten the seatback heater to the seatback cover, and then remove the seatback heater from the seatback cover.
| 38. REMOVE SEATBACK STOPPER PLATE |
w/ Center Armrest:
Using a T40 "TORX" socket, remove the 2 bolts.
Remove the bolt and stopper plate.
Remove the bush from the stopper plate.
w/o Center Armrest:
Using a T40 "TORX" socket, remove the 2 bolts.
Remove the bolt and stopper plate.
Remove the bush from the stopper plate.
| 39. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY (w/ Center Armrest) |
Using a T40 "TORX" socket, remove the 2 bolts and center seat armrest.
| 40. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY (w/ Center Armrest) |
| 41. REMOVE NO. 1 SEAT ARMREST PLATE (w/ Center Armrest) |
Using a moulding remover, detach the 4 clips and 2 claws, and then remove the 2 armrest plates.
| 42. REMOVE CUP HOLDER ASSEMBLY (w/ Center Armrest) |
Remove the 2 screws.
Using a moulding remover, detach the 2 clips and remove the cup holder.
| 43. REMOVE REAR SEAT RECLINING COVER LH |
Remove the screw.
Detach the claw and remove the cover.
| 44. REMOVE REAR NO. 2 SEAT RECLINING COVER LH |
Remove the screw.
Detach the clamp and remove the cover.
| 45. REMOVE REAR NO. 1 SEAT RECLINING COVER RH |
Remove the screw.
Detach the claw and remove the cover.
| 46. REMOVE REAR SEATBACK HINGE COVER LH |
Remove the screw.
Detach the claw and remove the cover.
| 47. REMOVE REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH |
Remove the 4 screws.
Detach the 4 claws and remove the cover.
| 48. REMOVE REAR SEAT SHOULDER BELT HOLE COVER LH |
Using a screwdriver, detach the 3 claws and remove the shoulder belt hole cover.
| 49. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH |
Remove the 3 nuts and belt sensor.
Remove the nut and then remove the outer belt.
| 50. REMOVE RECLINING ADJUSTING CABLE ASSEMBLY LH |
Detach the 2 cable clamps and disconnect the cable.
Detach the clamp and remove the adjusting cable.
| 51. REMOVE NO. 2 FOLD SEAT LOCK CONTROL CABLE ASSEMBLY |
Detach the 2 cable clamps and disconnect the cable.
Detach the clamp and remove the lock control cable.
| 52. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH |
LH Side:
Using a T40 "TORX" socket, remove the 2 bolts.
RH Side:
Using a T55 "TORX" socket, remove the 2 bolts.
Remove the seatback frame sub-assembly.
Remove the lower seatback cover.
| 53. REMOVE FOLD SEAT LOCK CONTROL CABLE SUB-ASSEMBLY |
Detach the 2 cable clamps and disconnect the 2 cables.
Remove the 2 fold seat lock cables.
| 54. REMOVE REAR NO. 1 SEAT LOCK CABLE ASSEMBLY |
Remove the 2 nuts and lower seat track bracket.
Cut the cable tie and disconnect the cable.
Detach the 3 cable clamps and disconnect the 3 cables.
Detach the clamp and remove the seat lock cable.
| 55. REMOVE REAR SEAT CUSHION HOLDER BRACKET LH (w/ Seat Heater System) |
Disconnect the seat wire connector.
Remove the 2 screws and holder bracket.
| 56. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH (w/ Seat Heater System) |
Detach the 2 claws and remove the seat heater control.
| 57. REMOVE REAR SEAT INNER BELT ASSEMBLY |
Remove the bolt and belt.
| 58. REMOVE NO. 1 SEAT LEG ASSEMBLY LH |
Using a T40 "TORX" socket, remove the 2 bolts and seat leg assembly.
| 59. REMOVE REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH |
Using a T40 "TORX" socket, remove the bolt.
Remove the 5 nuts and seat cushion frame.
| 60. REMOVE REAR SEAT LOCK CONTROL LEVER LH |
Remove the bolt and lock control lever.
