FRONT SEAT INNER BELT ASSEMBLY (for Bench Seat Type) - INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for LHD)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
12 (RDC) - 9 (E) Seat belt unfastened Below 1 Ω
Seat belt fastened 1 MΩ or higher

If the result is not as specified, replace the front seat inner belt assembly LH.

Text in Illustration

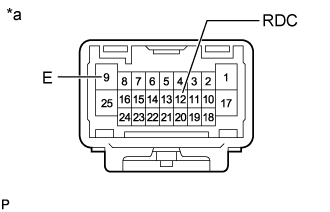

*a	Component without harness connected (Front Seat Inner Belt Assembly LH)

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for RHD)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
12 (RDC) - 9 (E) Seat belt unfastened Below 1 Ω
Seat belt fastened 1 MΩ or higher

If the result is not as specified, replace the front seat inner belt assembly RH.

Text in Illustration
*a	Component without harness connected (Front Seat Inner Belt Assembly RH)
