Land Cruiser URJ200 URJ202 GRJ200 VDJ200 - 3UR-FE EMISSION CONTROL
PURGE VALVE - INSTALLATION

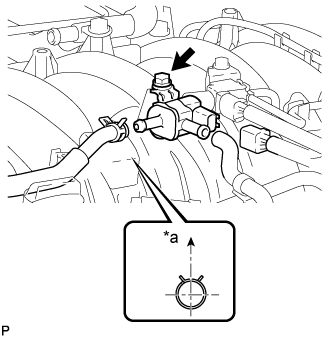

| 1. INSTALL PURGE VSV |
Install the purge VSV with the bolt.
- Torque:
- 21 N*m{ 214 kgf*cm, 15 ft.*lbf}
Connect the purge VSV connector.
| *a | Upper |
| 2. CONNECT PURGE LINE HOSE |
Connect the 2 purge line hoses.
- HINT:
- Turn the claw of the clip to the upper side.
| 3. INSTALL V-BANK COVER SUB-ASSEMBLY |
Attach the 2 V-bank cover hooks to the bracket. Then align the 3 V-bank cover grommets with the 3 pins, and press down on the V-bank cover to attach the pins.
| *1 | Bracket |
| *2 | Hook |
| *3 | Pin |
| *4 | Grommet |
