Land Cruiser URJ200 URJ202 GRJ200 VDJ200 - 1VD-FTV ENGINE CONTROL
MANIFOLD ABSOLUTE PRESSURE SENSOR - REMOVAL
| 1. REMOVE INTERCOOLER ASSEMBLY (w/ Intercooler) |
()
| 2. REMOVE DIESEL TURBO PRESSURE SENSOR (w/ Intercooler) |
Remove the 2 bolts and sensor.

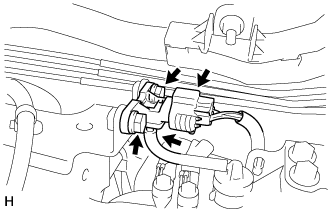

| 3. REMOVE DIESEL TURBO PRESSURE SENSOR (w/o Intercooler) |
Disconnect the connector and hose.
Remove the 2 bolts and sensor.
