Land Cruiser URJ200 URJ202 GRJ200 VDJ200 - 1VD-FTV FUEL
COMMON RAIL - INSPECTION
| 1. INSPECT COMMON RAIL ASSEMBLY RH |
Inspect the fuel pressure sensor.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 25°C (77°F) 16.4 kΩ or less 2 - 3 25°C (77°F) 3 kΩ or less

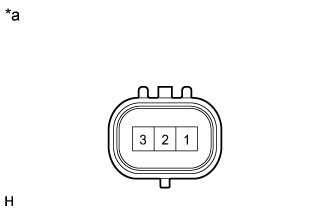

| *a | Component without harness connected (Fuel Pressure Sensor) |
If the result is not as specified, replace the common rail assembly RH.
| 2. INSPECT COMMON RAIL ASSEMBLY LH (w/ DPF) |
Inspect the pressure discharge valve.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 0.96 to 1.16 Ω
If the result is not as specified, replace the common rail assembly LH.
