INSPECT CAMSHAFT POSITION SENSOR

Measure the resistance according to the value(s) in the table below.

• Standard Resistance:

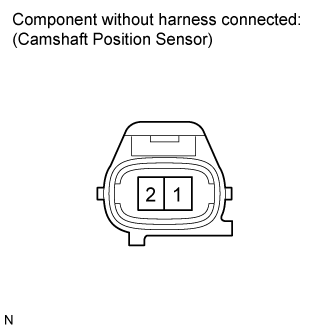

• Tester Connection	Condition	Specified Condition
  1 - 2	Hot	835 to 1400 Ω
  	Cold	1060 to 1645 Ω

• NOTICE:

• In the table above, the terms "cold" and "hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the sensor.
