REMOVE AUTOMATIC TRANSMISSION CASE O-RING

FIX OIL PUMP ASSEMBLY

REMOVE CLUTCH DRUM OIL SEAL RING

REMOVE STATOR SHAFT ASSEMBLY

REMOVE FRONT OIL PUMP BODY O-RING

INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

INSPECT STATOR SHAFT ASSEMBLY

INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

REMOVE FRONT OIL PUMP DRIVE GEAR

REMOVE FRONT OIL PUMP DRIVEN GEAR

REMOVE FRONT OIL PUMP OIL SEAL

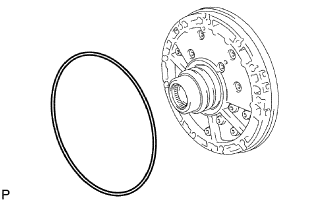

Remove the O-ring from the oil pump assembly.

Place the oil pump body on the torque converter.

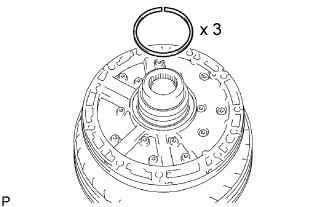

Remove the 3 oil seal rings.

Remove the 14 bolts, and then remove the stator shaft from the oil pump body.

Remove the O-ring from the oil pump body.

Remove the oil pump body from the torque converter clutch.

Using a dial indicator, measure the inside diameter of the oil pump body bush.

• Maximum inside diameter:
• 38.188 mm (1.50 in.)

Using a dial indicator, measure the inside diameter of the stator shaft bush.

• Maximum inside diameter:
• Front side:
• 21.577 mm (0.849 in.)
• Rear side:
• 32.08 mm (1.26 in.)

Push the driven gear to one side of the body.

Using a feeler gauge, measure the body clearance.

• Standard body clearance:
• 0.10 to 0.17 mm (0.00394 to 0.00669 in.)

• Maximum body clearance:
• 0.17 mm (0.00669 in.)

Using a feeler gauge, measure the tip clearance between the driven gear teeth and drive gear teeth.

• Standard tip clearance:
• 0.070 to 0.150 mm (0.00276 to 0.00591 in.)

• Maximum tip clearance:
• 0.150 mm (0.00591 in.)

Using a steel straightedge and feeler gauge, measure the side clearance of both gears.

• Standard side clearance:
• 0.02 to 0.05 mm (0.000787 to 0.00197 in.)

• Maximum side clearance:
• 0.05 mm (0.00197 in.)

If the side clearance of both gears is more than the maximum, replace the drive gear, driven gear or pump body assembly.

• HINT:

• There are 5 different thicknesses for the drive and driven gears.

• Drive and Driven Gears Thickness:

• Mark	Thickness
  0	10.74 to 10.749 mm (0.42283 to 0.42319 in.)
  1	10.75 to 10.759 mm (0.42323 to 0.42358 in.)
  2	10.76 to 10.77 mm (0.42362 to 0.42401 in.)
  3	10.771 to 10.78 mm (0.42405 to 0.42441 in.)
  4	10.781 to 10.79 mm (0.42445 to 0.42480 in.)

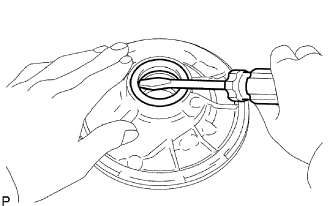

Using a screwdriver, pry out the oil seal.

• NOTICE:

• Be careful not to damage the bushing and oil pump body.
