CLUTCH PEDAL (for RHD) - ADJUSTMENT

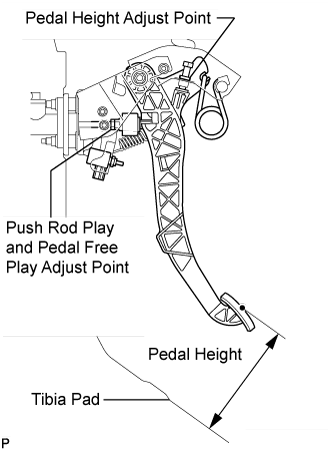

Loosen the lock nut and turn the stopper bolt or clutch switch until the height is correct. Tighten the lock nut.

• Torque:
• 16 N*m{ 160 kgf*cm, 12 ft.*lbf}

Depress the clutch pedal until the clutch resistance begins to be felt.

• Standard Clutch Pedal Free Play:
• 5.0 to 15.0 mm (0.197 to 0.591 in.)

Gently depress the clutch pedal until the resistance begins to increase a little.

• Standard Push Rod Play at Pedal Top:
• 1.0 to 5.0 mm (0.0394 to 0.197 in.)

Loosen the lock nut and turn the push rod until the clutch pedal free play and push rod play are correct.

• NOTICE:

• If pedal free play and push rod play are not within the standard range even after adjustment, inspect the related parts.

Tighten the lock nut.

• Torque:
• 12 N*m{ 120 kgf*cm, 9 ft.*lbf}

After adjusting the clutch pedal free play and push rod play, check the clutch pedal height.

• Standard Clutch Pedal Height from Tibia Pad:
• 164.8 to 174.8 mm (6.49 to 6.88 in.)

Pull the parking brake lever and chock the wheels.

Start the engine and allow it to idle.

Without depressing the clutch pedal, slowly move the shift lever to R until the gears engage.

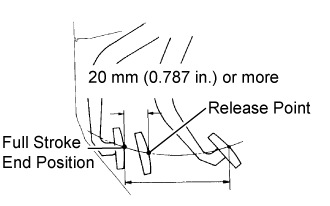

Gradually depress the clutch pedal and measure the stroke distance from the point that the gear noise stops (release point) up to the full stroke end position.

• Standard Distance from Pedal Stroke End Position to Release Point:
• 20 mm (0.787 in.) or more

If the distance is not as specified, perform the following operations:
