CHECK BRAKE CYLINDER AND PISTON

CHECK PAD LINING THICKNESS

CHECK FRONT DISC BRAKE ANTI-RATTLE SPRING

CHECK DISC THICKNESS

CHECK DISC RUNOUT

Check the cylinder bore and piston for rust or scoring.

If necessary, replace the disc brake caliper assembly.

Using a ruler, measure the pad lining thickness.

• Standard Thickness:
• 11.9 mm (0.469 in.)

• Minimum Thickness:
• 1.0 mm (0.0394 in.)

If the pad lining thickness is less than the minimum, replace the pad.

• HINT:

• Be sure to check the wear on the front disc after replacing the brake pad with a new one.

Use brake cleaner to clean the front disc brake anti-rattle spring. Check for deformation and cracks.

When installing the front disc brake anti-rattle spring to the front disc brake caliper, check that the spring force is applied to the hole pin and brake pad.

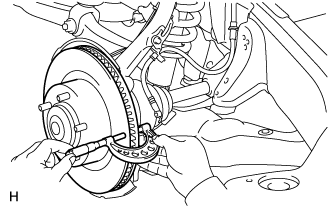

Using a micrometer, measure the disc thickness.

• Standard Thickness:
• 32.0 mm (1.26 in.)

• Minimum Thickness:
• 29.0 mm (1.15 in.)

If the disc thickness is less than the minimum, replace the disc.

Fix the disc in place with the 5 hub nuts.

• Torque:
• for Aluminum Wheel:
• 131 N*m{ 1336 kgf*cm, 97 ft.*lbf}
• for Steel Wheel:
• 209 N*m{ 2131 kgf*cm, 154 ft.*lbf}

Using a dial indicator, measure the disc runout 10 mm (0.394 in.) from the outer edge of the disc.

• Maximum Disc Runout:
• 0.05 mm (0.00196 in.)

If the runout is more than the maximum, change the installation positions of the disc and axle so that the runout will become minimal. If the runout is more than the maximum even when the installation positions are changed, check the bearing looseness in the axial direction () and the axle hub runout (). If the bearing looseness and the axle hub runout are normal, and if the disc thickness is not within the specified range, grind the disc. If the disc thickness is less than the minimum, replace the disc.

Remove the 5 hub nuts and front disc.
