TOYOTA PARKING ASSIST-SENSOR SYSTEM - Clearance Warning Buzzer Circuit

DESCRIPTION

The No. 1 clearance warning buzzer sounds to alert the driver and the buzzed frequency changes depending on the distance to an obstacle.


WIRING DIAGRAM

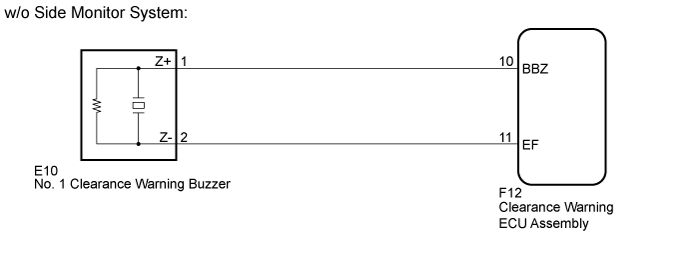

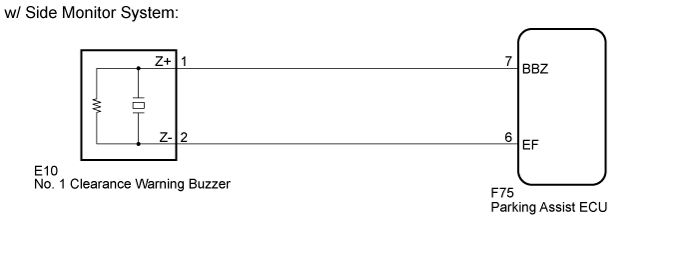

Toyota Parking Assist-Sensor System - Clearance Warning Buzzer Circuit. PARK ASSIST / MONITORING. Land Cruiser URJ200  URJ202 GRJ200 VDJ200

Toyota Parking Assist-Sensor System - Clearance Warning Buzzer Circuit. PARK ASSIST / MONITORING. Land Cruiser URJ200  URJ202 GRJ200 VDJ200

INSPECTION PROCEDURE

1.PERFORM ACTIVE TEST USING INTELLIGENT TESTER (NO. 1 CLEARANCE WARNING BUZZER)

Select the Active Test, use the intelligent tester to generate a control command, and then check that the buzzer operates ().

Clearance Sonar
Tester DisplayTest PartControl RangeDiagnostic Note
Front Buzzer No. 1 clearance warning buzzerOperate or Stop-
  • OK:
  • No. 1 clearance warning buzzer sounds.
Result
ResultProceed to
OKA
NG (w/ Side Monitor System)B
NG (w/o Side Monitor System)C
B
Go to step 2
C
Go to step 3
A
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE ()
2.CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - NO. 1 CLEARANCE WARNING BUZZER)

Disconnect the F75 parking assist ECU connector.

Disconnect the E10 No. 1 clearance warning buzzer connector.

Measure the resistance according to the value(s) in the table below.

  • Standard Resistance:
  • Tester ConnectionConditionSpecified Condition
    F75-7 (BBZ) - E10-1 (Z+)AlwaysBelow 1 Ω
    F75-6 (EF) - E10-2 (Z-)AlwaysBelow 1 Ω
    F75-7 (BBZ) - Body groundAlways10 kΩ or higher
    F75-6 (EF) - Body groundAlways10 kΩ or higher
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE NO. 1 CLEARANCE WARNING BUZZER ()
3.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - NO. 1 CLEARANCE WARNING BUZZER)

Disconnect the F12 clearance warning ECU connector.

Disconnect the E10 No. 1 clearance warning buzzer connector.

Measure the resistance according to the value(s) in the table below.

  • Standard Resistance:
  • Tester ConnectionConditionSpecified Condition
    F12-10 (BBZ) - E10-1 (Z+)AlwaysBelow 1 Ω
    F12-11 (EF) - E10-2 (Z-)AlwaysBelow 1 Ω
    F12-10 (BBZ) - Body groundAlways10 kΩ or higher
    F12-11 (EF) - Body groundAlways10 kΩ or higher
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
REPLACE NO. 1 CLEARANCE WARNING BUZZER ()
