TOYOTA PARKING ASSIST-SENSOR SYSTEM - Clearance Sonar Main Switch Circuit
DESCRIPTION
When the back sonar or clearance sonar switch assembly turns on, the ON signal is input into the parking assist ECU*1 or clearance warning ECU assembly*2.
*1: w/ Side Monitor System
*2: w/o Side Monitor System

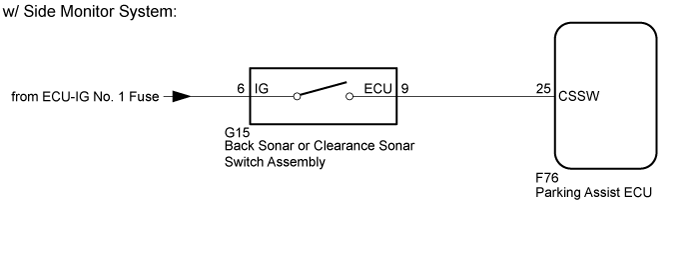

WIRING DIAGRAM
INSPECTION PROCEDURE
| 1.READ VALUE USING INTELLIGENT TESTER (BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY) |
Check the Data List for proper functioning of the back sonar or clearance sonar main switch assembly ().
Clearance Sonar| Tester Display | Measurement Item/Range | Normal Condition | Diagnostic Note |
| Main Switch | Back sonar or clearance sonar switch assembly / ON or OFF | OFF: Back sonar or clearance sonar switch assembly off
ON: Back sonar or clearance sonar switch assembly on | - |
- OK:
- The intelligent tester display changes according to operation of back sonar or clearance sonar switch assembly.
| OK | |
| |
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE ()
|
|
| 2.INSPECT BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY |
Remove the back sonar or clearance sonar switch assembly ().
Inspect the back sonar or clearance sonar switch assembly ().
Result| Result | Proceed to |
| OK (w/ Side Monitor System) | A |
| OK (w/o Side Monitor System) | B |
| NG | C |
| |
|
| | REPLACE BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY ()
|
|
|
| 3.CHECK HARNESS AND CONNECTOR (BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY - PARKING ASSIST ECU AND BATTERY) |
Disconnect the G15 back sonar or clearance sonar switch assembly connector.
Disconnect the F76 parking assist ECU connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
| Tester Connection | Switch Condition | Specified Condition |
| G15-6 (IG) - Body ground | Engine switch on (IG) | 11 to 14 V |
| Engine switch off | Below 1 V |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| G15-9 (ECU) - F76-25 (CSSW) | Always | Below 1 Ω |
| G15-9 (ECU) - Body ground | Always | 10 kΩ or higher |
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| OK | |
| |
| REPLACE PARKING ASSIST ECU ()
|
|
| 4.CHECK HARNESS AND CONNECTOR (BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY - CLEARANCE WARNING ECU ASSEMBLY AND BATTERY) |
Disconnect the G15 back sonar or clearance sonar switch assembly connector.
Disconnect the F12 clearance warning ECU assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
| Tester Connection | Switch Condition | Specified Condition |
| G15-6 (IG) - Body ground | Engine switch on (IG) | 11 to 14 V |
| Engine switch off | Below 1 V |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| G15-9 (ECU) - F12-12 (CSSW) | Always | Below 1 Ω |
| G15-9 (ECU) - Body ground | Always | 10 kΩ or higher |
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| OK | |
| |
| REPLACE CLEARANCE WARNING ECU ASSEMBLY ()
|
|
