Headlight Dimmer Switch -- Inspection |
| 1. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY (for LHD) |
Measure the resistance of the switch.
- Standard resistance:
- Light control switch
Tester Connection
| Switch Condition
| Specified Condition
|
13 (B1) - 10 (T1)
| OFF
| 10 kΩ or higher
|
12 (RF) - 11 (ED)
| OFF
| 10 kΩ or higher
|
13 (B1) - 10 (T1)
| TAIL
| Below 1 Ω
|
13 (B1) - 10 (T1)
| HEAD
| Below 1 Ω
|
12 (RF) - 11 (ED)
| HEAD
| Below 1 Ω
|
- Headlight dimmer switch:
Tester Connection
| Switch Condition
| Specified Condition
|
11 (ED) - 9 (HU)
| FLASH
| Below 1 Ω
|
11 (ED) - 8 (HL)
| FLASH
| Below 1 Ω
|
11 (ED) - 8 (HL)
| LO BEAM
| Below 1 Ω
|
11 (ED) - 9 (HU)
| HI BEAM
| Below 1 Ω
|
11 (ED) - 8 (HL)
| HI BEAM
| Below 1 Ω
|
- Turn signal switch:
Tester Connection
| Switch Condition
| Specified Condition
|
7 (E) - 6 (TR)
| Right turn
| Below 1 Ω
|
7 (E) - 5 (TL)
| Neutral
| 10 kΩ or higher
|
7 (E) - 6 (TR)
| Neutral
| 10 kΩ or higher
|
7 (E) - 5 (TL)
| Left turn
| Below 1 Ω
|
- Fog light switch:
Tester Connection
| Switch Condition
| Specified Condition
|
4 (LFG) - 3 (BFG)
| OFF
| 10 kΩ or higher
|
4 (LFG) - 3 (BFG)
| ON
| Below 1 Ω
|
If the result is not as specified, replace the dimmer switch assembly.

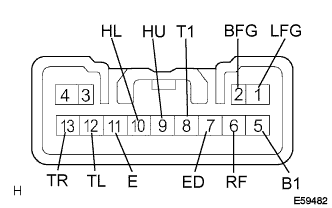

| 2. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY (for RHD) |
Measure the resistance of the switch.
- Standard resistance:
- Light control switch
Tester Connection
| Switch Condition
| Specified Condition
|
5 (B1) - 8 (T1)
| OFF
| 10 kΩ or higher
|
6 (RF) - 7 (ED)
| OFF
| 10 kΩ or higher
|
5 (B1) - 8 (T1)
| TAIL
| Below 1 Ω
|
5 (B1) - 8 (T1)
| HEAD
| Below 1 Ω
|
6 (RF) - 7 (ED)
| HEAD
| Below 1 Ω
|
- Headlight dimmer switch:
Tester Connection
| Switch Condition
| Specified Condition
|
7 (ED) - 9 (HU)
| FLASH
| Below 1 Ω
|
7 (ED) - 10 (HL)
| FLASH
| Below 1 Ω
|
7 (ED) - 10 (HL)
| LO BEAM
| Below 1 Ω
|
7 (ED) - 9 (HU)
| HI BEAM
| Below 1 Ω
|
7 (ED) - 10 (HL)
| HI BEAM
| Below 1 Ω
|
- Turn signal switch:
Tester Connection
| Switch Condition
| Specified Condition
|
11 (E) - 13 (TR)
| Right turn
| Below 1 Ω
|
11 (E) - 12 (TL)
| Neutral
| 10 kΩ or higher
|
11 (E) - 13 (TR)
| Neutral
| 10 kΩ or higher
|
11 (E) - 12 (TL)
| Left turn
| Below 1 Ω
|
- Fog light switch:
Tester Connection
| Switch Condition
| Specified Condition
|
1 (LFG) - 2 (BFG)
| OFF
| 10 kΩ or higher
|
1 (LFG) - 2 (BFG)
| ON
| Below 1 Ω
|
If the result is not as specified, replace the dimmer switch assembly.
