Hazard Warning Switch Inspection


  1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

Hazard Warning Switch -- Inspection



1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Hazard Warning Switch.Hazard Warning Switch Inspection

  1. Measure the resistance of the switch.

    Standard resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition

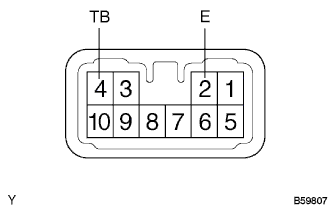

    2 (E) - 4 (TB)
    		OFF
    		10 kΩ or higher
    2 (E) - 4 (TB)
    		ON
    		Below 1 Ω
    If the result is not as specified, replace the switch assembly.

  1. Check illumination operation.

    1. Connect the battery's positive (+) lead to terminal 8 and negative (-) lead to terminal 9. Then check that the bulb illuminates.

      OK:
      Bulb illuminates.
      If the result is not as specified, replace the switch assembly.
