Horn (For Hatchback) Inspection

Vehicle Exterior. Yaris. Ncp93, 131
Horn. Yaris. Ncp93, 131

  1. INSPECT LOW PITCHED HORN ASSEMBLY

Horn (For Hatchback) -- Inspection



1. INSPECT LOW PITCHED HORN ASSEMBLY


    Yaris. Ncp93, 131.Horn.Horn System (For Sedan).Horn (For Hatchback) Inspection

  1. Check the operation.

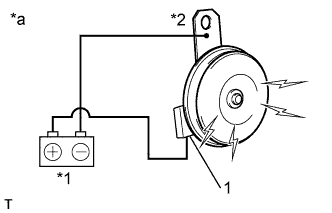

    Text in Illustration
    *1
    		Battery
    *2
    		Bracket
    *a
    		Component without harness connected
    (Low Pitched Horn Assembly)

    1. Apply battery voltage to the terminal and the horn bracket, and check that the horn sounds.

      OK:
      Measurement Condition
      		Specified Condition
      Battery positive (+) → Terminal 1
      Battery negative (-) → Bracket
      		Low pitched horn sounds
      If the result is not as specified, replace the low pitched horn assembly.
