Navigation System (For Dvd) Panel Switches Do Not Function

Body Electrical. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Navigation. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

INSPECTION PROCEDURE

CHECK PANEL SWITCH

CHECK PANEL SWITCH (DISPLAY CHECK MODE)

NAVIGATION SYSTEM (for DVD) - Panel Switches do not Function


INSPECTION PROCEDURE

1.CHECK PANEL SWITCH

  1. Check for foreign matter around the switches that might prevent operation.

    OK:
    No foreign matter is found.


NG
REMOVE ANY FOREIGN MATTER FOUND
OK


2.CHECK PANEL SWITCH (DISPLAY CHECK MODE)
Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

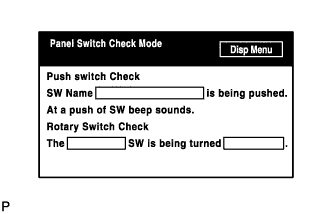

  1. Enter the "Display Check" mode and select "Panel Switch Check" (RAV4_ACA30 RM000003A3N00LX.html).

  1. Operate the abnormal switch and check if the switch name and status are correctly displayed.

    OK:
    The switch name and status are correctly displayed as operated.


NG
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE (RAV4_ACA30 RM000001VDR003X.html)
OK

REPLACE NAVIGATION RECEIVER ASSEMBLY (RAV4_ACA30 RM000003P8D001X.html)
