Seat Belt Control Ecu -- Removal |
| 1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER |
| 2. REMOVE SPARE WHEEL COVER |
| 3. REMOVE DECK SIDE TRIM BOX LH |
| 4. REMOVE DECK SIDE TRIM BOX RH |
| 5. REMOVE ROPE HOOK ASSEMBLY |
Remove the 3 bolts and 3 rope hook assemblies.
 |
| 6. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER |
Using a clip remover, remove the 3 clips.
 |
Disengage the 4 clips and remove the rear luggage compartment trim cover.
| 7. REMOVE NO. 2 ROOM LIGHT ASSEMBLY |
Disengage the claw and disconnect the No. 2 room light assembly.
 |
Disconnect the connector and remove the No. 2 room light assembly.
| 8. REMOVE ROPE HOOK |
Remove the 2 rope hooks.
 |
| 9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER |
Remove the 3 luggage compartment trim hooks as shown in the illustration.
 |
Using a clip remover, remove the 2 clips.
 |
Disengage the 4 claws and remove the front luggage compartment trim cover.
| 10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
Remove the screw and No. 1 luggage compartment trim hook.
 |
| 11. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER LH |
Using a clip remover, remove the 3 clips and side luggage compartment trim cover LH.
 |
| 12. REMOVE SEAT BELT CONTROL ECU |
Disconnect the connectors.
 |

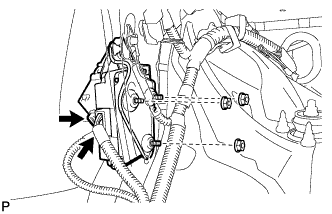

Remove the 3 nuts and remove the seat belt control ECU and the clearance warning ECU as a unit.

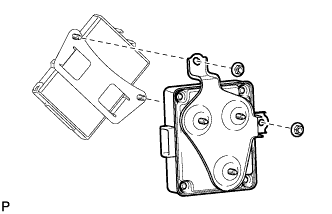

Remove the 2 nuts and seat belt control ECU.
 |
