Parking Brake Cable Installation

Install the 2 cable support brackets to the No. 2 parking brake cable assembly LH.

Install the No. 2 parking brake cable assembly LH to the parking brake plate with the 2 nuts.

Torque:

8.0 N*m{82 kgf*cm, 71 in.*lbf}

Connect the No. 2 parking brake cable assembly LH to the parking brake equalizer.

Install the No. 2 parking brake cable assembly LH to the body with the 3 bolts and 2 clamps.

Torque:

Bolt A:

6.0 N*m{61 kgf*cm, 53 in.*lbf}

Bolt B:

19 N*m{194 kgf*cm, 14 ft.*lbf}

Apply a thin layer of high temperature grease to the area where the parking brake plate contacts the parking brake shoe (Click here).

Apply a thin layer of high temperature grease to the area where the parking brake shoe lever contacts the parking brake anchor block.

Install the parking brake shoe lever to the parking brake cable assembly.

NOTICE:

Take care to install the correct parking brake shoe lever because the direction of the pin is different between left and right.

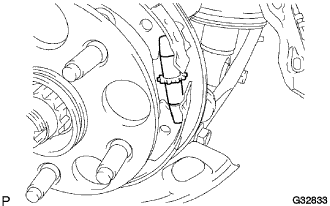

Using SST, install the No. 2 parking brake shoe assembly with the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

SST

09718-00010

HINT:

Use the service hole to retain the No. 2 shoe hold down spring pin with your finger.

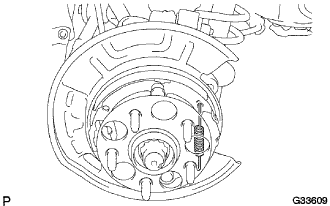

Using SST, install the No. 1 parking brake shoe assembly with the No. 1 shoe hold down spring cup, No. 1 compression spring and No. 1 shoe hold down spring pin.

SST

09718-00010

HINT:

Use the service hole to retain the No. 1 shoe hold down spring pin with your finger.

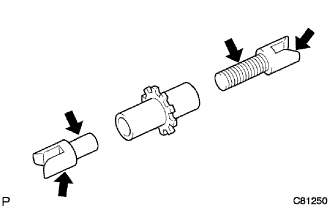

Apply high temperature grease to the thread and all joining areas of the parking brake shoe adjusting screw set.

Install the parking brake shoe adjusting screw set.

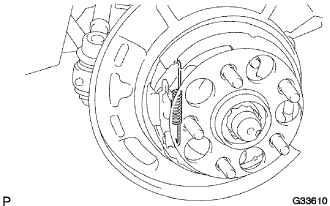

Install the No. 1 parking brake shoe return spring.

Install the No. 2 parking brake shoe return spring.

Make sure that all the parts are installed properly.
If necessary, reinstall properly.

Align the matchmarks on the rear disc and rear axle hub.

Temporarily install the hub nuts.

Remove the shoe adjusting hole plug.

Turn the shoe adjuster and expand the shoe until the disc locks.

Turn and contract the shoe adjuster until the disc can rotate smoothly.

Standard:

Return 7 notches

Check that there is no brake drag against the shoe.

Install the shoe adjusting hole plug.

Remove the hub nuts.

Install the rear disc brake caliper assembly with the 2 bolts and 2 new No. 1 caliper plates.

Torque:

50 N*m{510 kgf*cm, 37 ft.*lbf}

NOTICE:

1. Do not twist the brake hose.

2. Make sure that the bolts are free from damage and foreign matter.

3. Do not overtighten the bolts.


Install the No. 2 differential support protector with the 2 nuts.

Pass the No. 1 parking brake cable assembly through the parking brake and hold the cable with the clip.

HINT:

Fully tighten the No. 1 wire adjusting nut and lock nut when adjusting the parking brake free play.

Fully bend the parking brake pedal claw.
