Lubrication System On-Vehicle Inspection

Engine Hybrid System. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25
1Gr-Fe Lubrication. Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25

  1. CHECK ENGINE OIL QUALITY

  2. CHECK ENGINE OIL LEVEL

  3. INSPECT OIL PRESSURE

Lubrication System -- On-Vehicle Inspection



1. CHECK ENGINE OIL QUALITY

  1. Check the oil for deterioration, water contamination, discoloration or thinning.
    If the quality is visibly poor, replace the oil and oil filter (HILUX_TGN26 RM000000YLU00CX.html).



2. CHECK ENGINE OIL LEVEL

  1. Warm up the engine, and then stop the engine and wait for 5 minutes.

  1. Check that the engine oil level is between the low level and full level marks on the dipstick.
    If low, check for leakage and add oil up to the full level mark.

    NOTICE:
    Do not fill engine oil above the full level mark.


3. INSPECT OIL PRESSURE

  1. Remove the engine oil pressure switch (HILUX_TGN26 RM000002ZAX00SX.html).



    Hilux. Tgn26, 36 Kun25, 26, 35, 36 Ggn25.1Gr-Fe Lubrication.Lubrication System.Lubrication System On-Vehicle Inspection

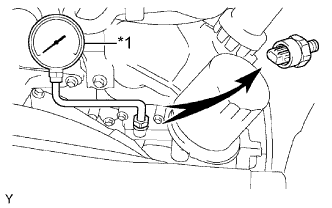

  1. Install an oil pressure gauge.

    Text in Illustration
    *1
    		Oil Pressure Gauge

  1. Warm up the engine.

  1. Inspect the oil pressure.

    Standard Oil Pressure:
    Condition
    		Specified Condition
    Idle
    		29 kPa (0.3 kgf/cm2, 4.2 psi) or higher
    3000 rpm
    		294 to 588 kPa (3.0 to 6.0 kgf/cm2, 43 to 85 psi)
    If the pressure is not as specified, check the oil pump (HILUX_TGN26 RM0000015XV00FX.html).

  1. Remove the oil pressure gauge.

  1. Install the engine oil pressure switch (HILUX_TGN26 RM000002ZAU00SX.html).
